What does CRPS form factor mean?

CRPS (Common Redundant Power Supply) is a standardized PSU footprint of 1U height, 73.5mm width and 185mm or 265mm length, allowing swapped vendors and N+N redundancy in compliant server chassis.

Why is 54V output preferred for AI racks?

54V direct-to-rail architectures reduce double conversion losses versus 12V distribution and carry more power per conductor, which suits GPU-dense racks.

What efficiency does 80 PLUS Titanium require?

For 230V internal redundant supplies: 90% at 10% load, 94% at 50% load and 96% at 100% load.

What is the MOQ and lead time for OEM CRPS orders?

Standard MOQ starts at 100 pcs with 30–45 day lead times; pilot builds are available for type testing before mass production.

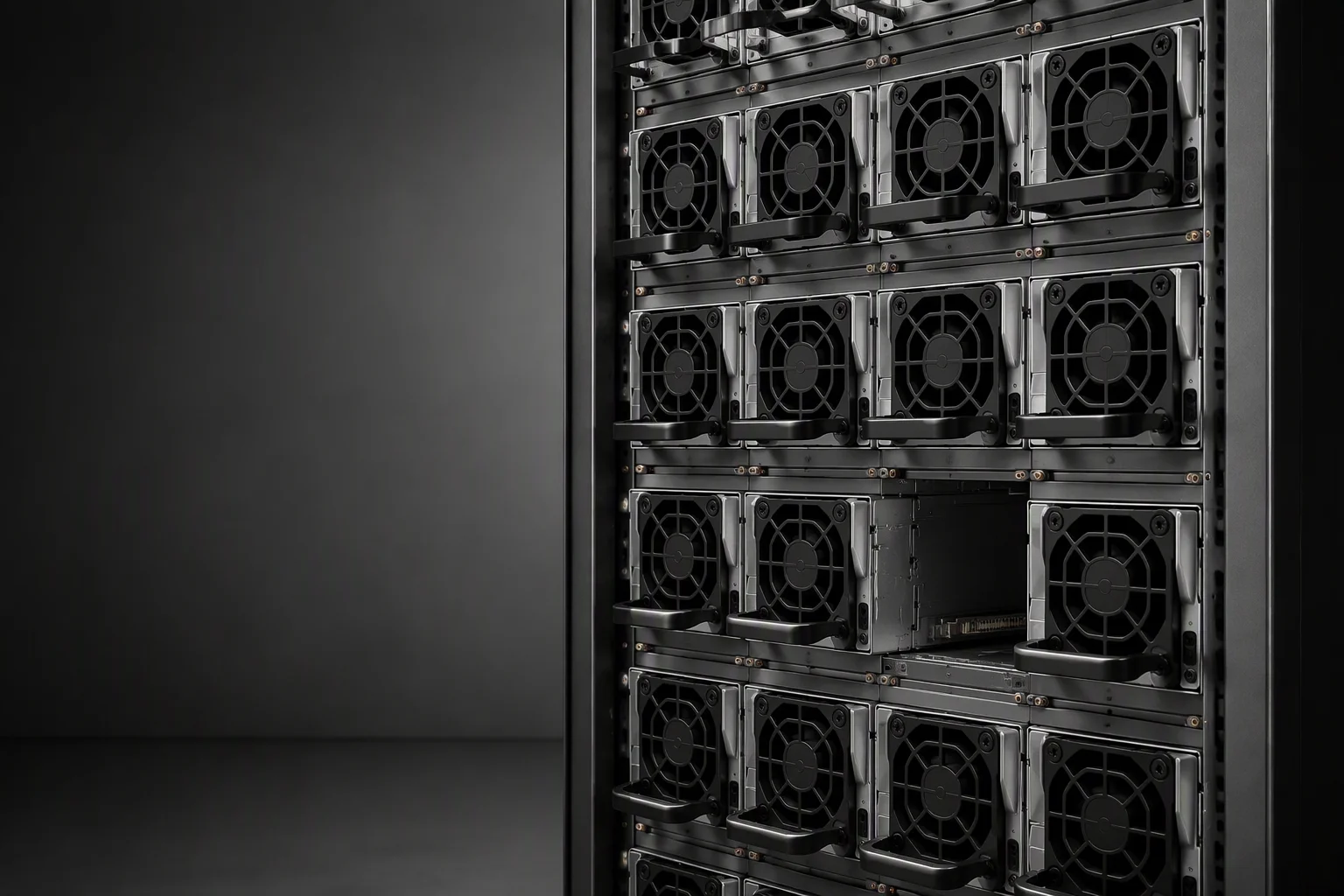

CRPS power supply modules in a power shelf

POWER SYSTEMS / CRPS SERVER PSU

Titanium conversion, hot-swap by design.

CRPS and mCRPS server PSUs from 550W to 5.5kW+ — 80 PLUS Titanium efficiency, 54V rails for GPU racks, and a burn-in room every unit passes before it ships.

Get CRPS Quote Sizing Guide

SPEC SHEET

Form factor	CRPS 73.5×40×185 / 265mm · mCRPS
Power range	550W – 3200W standard · 5.5kW+ AI class
Output	12V main · 54V AI rail · +5Vsb standby
Efficiency	80 PLUS Titanium · 96% @50% load (230V)
Control	PMBus digital · firmware telemetry
Redundancy	N+N / N+1 hot-swap
Safety	UL 62368-1 · IEC 62368-1 · CE/UKCA

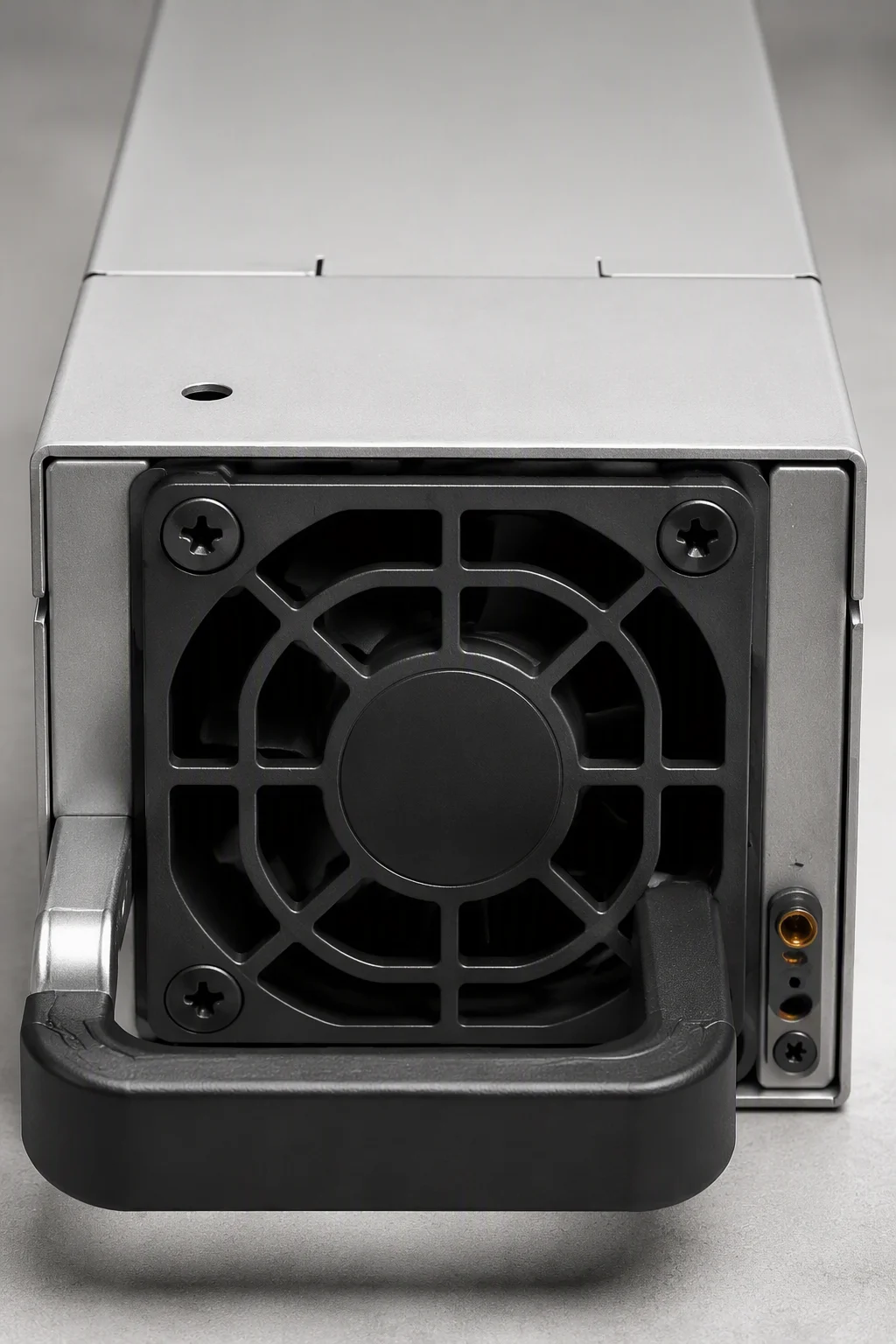

CRPS module handle and fan grille close-up

WHY 54V

One less conversion on the way to the GPU.

Legacy 12V architectures step down twice between the PSU and a modern accelerator. A 54V direct-to-rail feed skips a stage, carries roughly four times the power per conductor, and frees floor space for compute instead of copper. That is why the GB300 generation of AI racks standardized on high-current 54V shelves — and why our roadmap follows the mCRPS footprint TI and shelf vendors are converging on.

>100 W/in³ mCRPS density demo3.6 kW reference in modular form54V+12V+5Vsb multi-rail

STANDARD RANGE

Wattage ladder, OEM-tunable.

Every row below is a platform, not a fixed SKU — fan curves, connector sets and faceplates are configured per program.

Model class	Power	Output	Efficiency	Cooling	Typical use
CRPS-S	550–800W	12V	Platinum / Titanium	40mm fan	Storage & edge servers
CRPS-M	1300–1600W	12V	Titanium	40mm fan	1U/2U compute
CRPS-L	2000–3200W	12V / 54V	Titanium 96%	Centrifugal blower	AI nodes · NVL-class trays
mCRPS	3600W+	54V	Titanium	Modular fan wall	High-density GPU shelves
CRPS-AI	5500W+	54V multi-rail	Titanium target	Blower + cold-plate option	GB300-class power shelves
Shelf system	up to 33kW	54V busbar	System-managed	Shelf fans + BBU bay	Complete rack power shelf

PRODUCTION PATH

Every unit through the same gates.

SMT & DIP

Power stages placed on dedicated high-current lines with SPI paste checks and AOI after reflow.

Auto test

Hi-pot, ground bond, in-circuit and functional stations log every serial to the unit record.

100% burn-in

Full-load aging room cycles at elevated temperature; zero-defect exit criteria per lot.

Compliance pack

UL 62368-1 evidence, 80 PLUS style reports and export docs assembled per destination market.

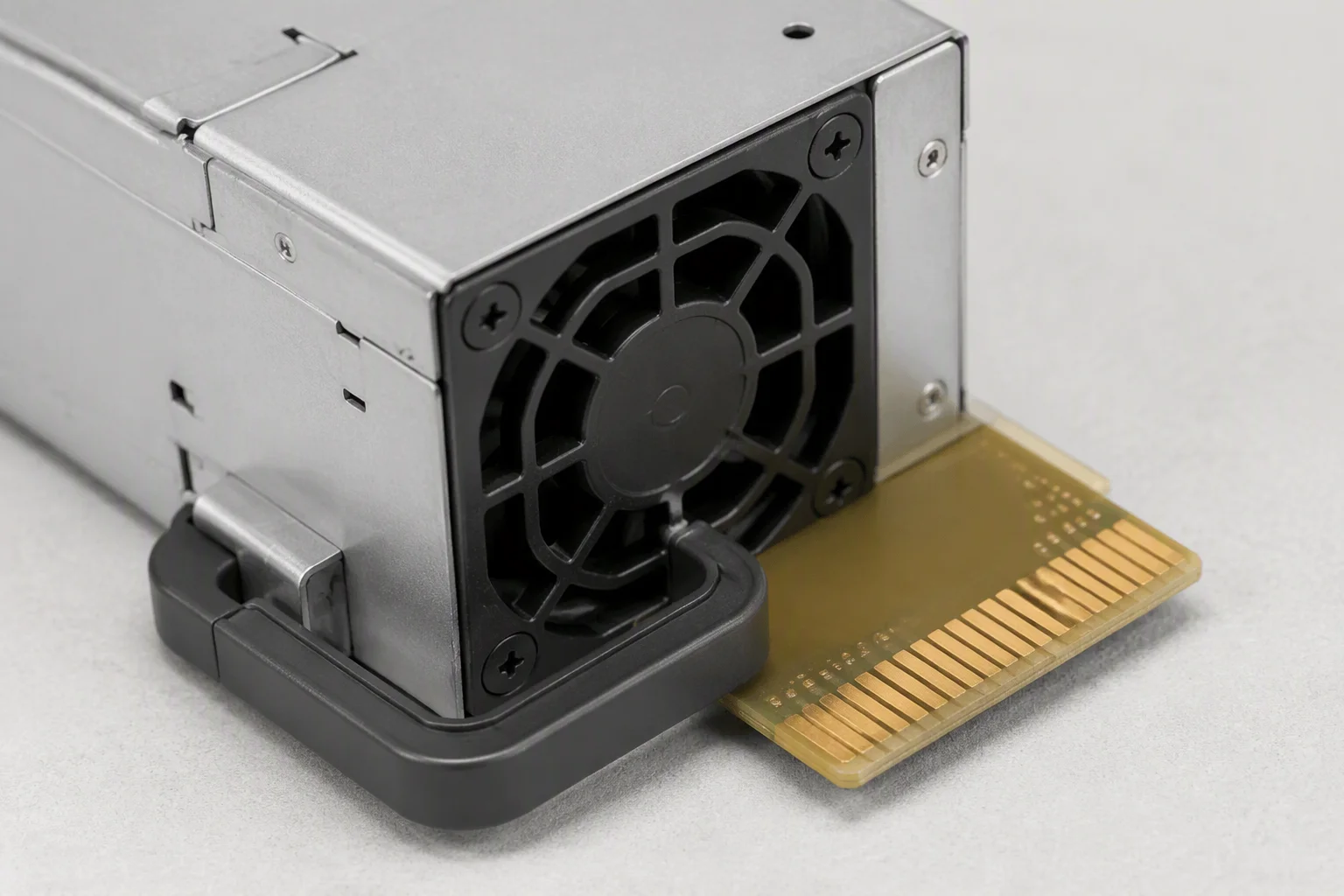

CRPS gold-finger connector and release handle detail

OEM / ODM OPTIONS

Configured to your chassis, not ours.

Connector families, faceplate silk, fan curves, PMBus maps and packing are all program parameters. Typical OEM engagements start from a chassis drawing and end with a shelf-ready kit — including matching power shelves and BBU bays from our integration line.

MOQ 100 pcsLead time 30–45 daysPilot type-test units first

FAQ

CRPS questions we hear most.

What does the CRPS form factor actually standardize?

The PSU footprint: 1U height, 73.5mm width and 185mm (short) or 265mm (long) depth, plus connector and handle positions. It lets one chassis accept qualified supplies from multiple vendors in N+N configurations.

Why is 54V output becoming the AI standard?

At the same power, 54V carries about a quarter of the current of 12V, cutting conduction losses and cable mass. Direct-to-rail 54V architectures also remove one DC-DC conversion stage between PSU and accelerator.

What does 80 PLUS Titanium guarantee?

For 230V internal redundant supplies: 90% efficiency at 10% load, 94% at 50% and 96% at 100% — the highest 80 PLUS tier and the de-facto requirement for high-density AI procurement.

Can you match our existing shelf firmware polling?

Yes. PMBus command maps, telemetry fields and LED behavior are configured during the pilot build so the shelf manager sees a familiar device.

CRPS PROGRAM

Send the chassis drawing — pilot units follow.

Request RFQ
